BRAKE MASTER CYLINDER ; 100-6 BN4 (1956-1959)
GR64067854 1 BN4

BRAKE MASTER CYLINDER ; 100-6 BN4 (1956-1959)

Product Code: GR64067854 100-6

£30.08 exc VAT£36.09 inc VAT

In stock

Out of stock

Product Description

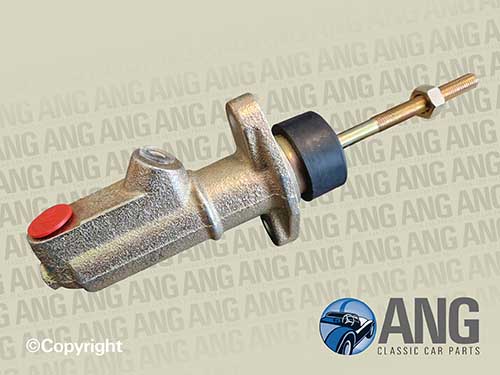

BRAKE MASTER CYLINDER that would be suitable for the following vehicles :

AUSTIN HEALEY 100-6 BN4 ; YEARS 1956-1959.

This master cylinder is supplied NEW and boxed. It is manufactured in Italy and is of excellent quality and can be used for either the brake and/or clutch hydraulic systems. It is supplied with the push rod but not the fork.

MASTER CYLINDER DIMENSIONS :

Body length inc. flange = 4" (100mm)

Fixing centre holes are 5/16" and are 2.25" (58mm) centre to centre approx.

Plunger length from face of flange to end of screw thread = 4" (105mm) approx.

Threaded length = 1.75" (45mm) approx.

Outlet hole = 3/8"

Inlet hole = 7/16"
